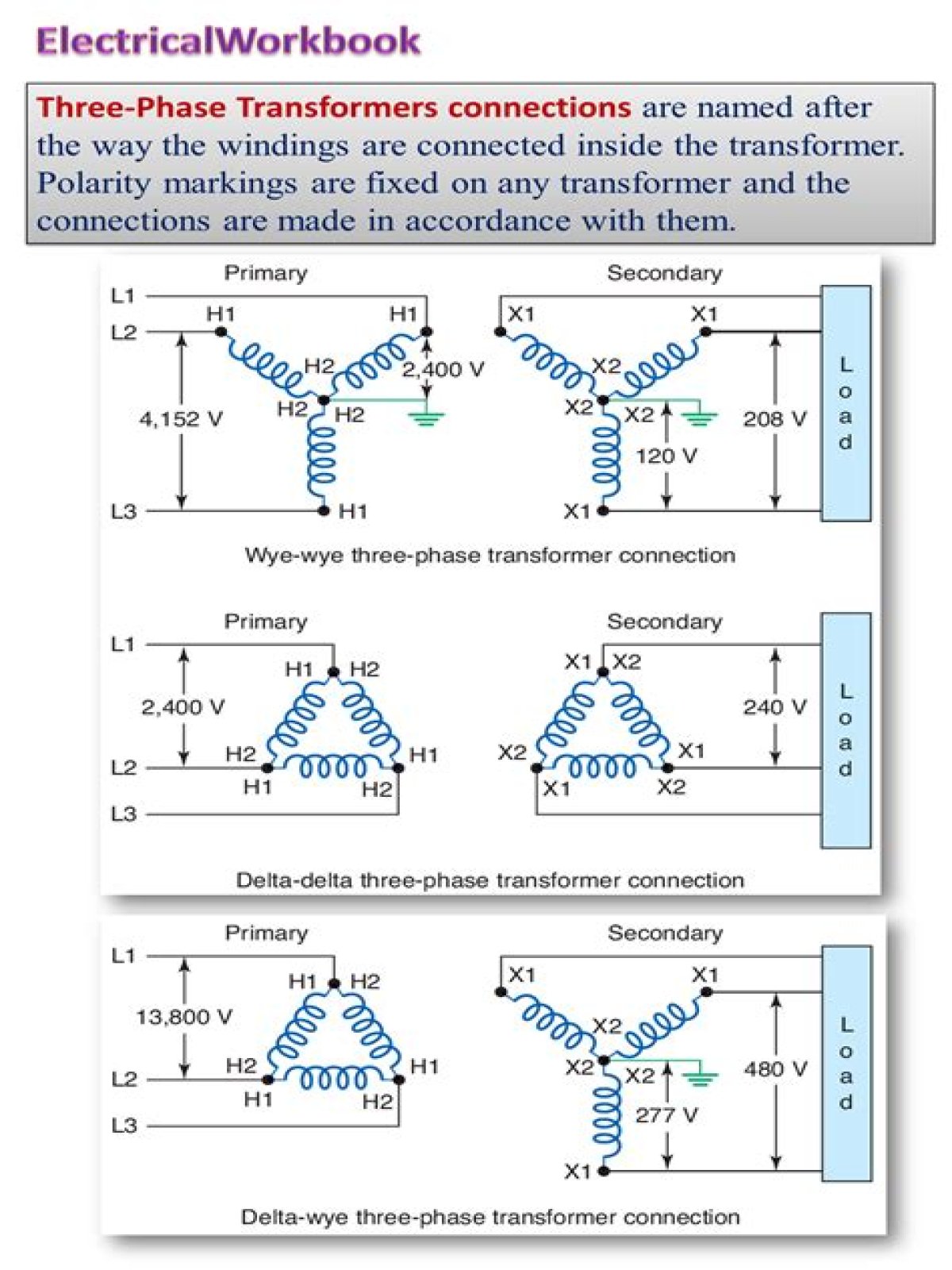

In the case of three phase transformer windings, three forms of connection are possible: “star” (wye), “delta” (mesh) and “interconnected-star” (zig-zag).
Which connection is used to step down 3 phase voltage?
Star-delta OR wye-delta (Y-Δ) This connection is mainly used in step down transformer at the substation end of the transmission line. The ratio of secondary to primary line voltage is 1/√3 times the transformation ratio. There is 30° shift between the primary and secondary line voltages.
What are the two most common connections for 3 phase transformers?
The two most commonly used three-phase winding configurations are delta and wye, named after the Greek and English letter that each resembles. In a delta configuration, the three windings are connected end-to-end to form a closed path. A phase is connected to each corner of the delta.
Which connection is used for step down transformer?
In the star delta connection, the primary side connected in star fashion & the secondary side connected in delta fashion, hence the fewer number of turns are required. So this makes the connection economical for high voltage Step Down Transformers.
What are the types of transformer connections?
The various types of connections are explained below in details.
- Delta-Delta (Δ-Δ) Connection. The delta-delta connection of three identical single phase transformer is shown in the figure below.
- Star-Star (Υ-Υ) Connection of Transformer.
- Delta-Star (Δ-Υ) Connection.
- Star-Delta (Υ-Δ) Connection.
Which connection is used for step up transformer?
Delta-Star Connection Delta-Star Connection of Transformer The main use of this connection is to step up the voltage i.e. at the begining of high tension transmission system.
How do you wire a 3 phase transformer?
Position the transformer between the three-phase source and the three-phase load. Locate the three input wires on the three-phase source. Each wire represents one phase. Connect the three input wires from the source to the three input terminals on the primary, or “delta,” side of the transformer.
What is yy connection?
In the Y-Y connection, each primary and secondary winding is connected to a neutral point. The neutral point may or may not be brought out to an external physical connection and the neutral may or may not be grounded.
What is the principle of step down transformer?
The step-down transformer working principle of a step-down transformer is Faraday’s law of electromagnetic induction. In a transformer, mutual induction is necessary between two windings for transmission.
