The addressing modes provided by the 8086 family include displacement-only, base, displacement plus base, base plus indexed, and displacement plus base plus indexed. Variations on these five forms provide the 17 different addressing modes on the 8086.
What are the different addressing modes in 8086 explain with an example?
Based mode – In this the effective address is the sum of base register and displacement. Based indexed displacement mode – In this type of addressing mode the effective address is the sum of index register, base register and displacement. String mode – This addressing mode is related to string instructions.
How many modes are there in 8086 microprocessor?
8086 is designed to operate in two modes, Minimum and Maximum. It can prefetches upto 6 instruction bytes from memory and queues them in order to speed up instruction execution.
What do understand by the modes of Intel 8086 microprocessor?
There are two operating modes of operation for Intel 8086, namely the minimum mode and the maximum mode. When only one 8086 CPU is to be used in a microprocessor system, the 8086 is used in the Minimum mode of operation. In a multiprocessor system 8086 operates in the Maximum mode.
What are the 2 modes of 8086?
The 8086 microprocessor can work in two modes of operations : Minimum mode and Maximum mode. In the minimum mode of operation the microprocessor do not associate with any co-processors and can not be used for multiprocessor systems. In the maximum mode the 8086 can work in multi-processor or co-processor configuration.
Which is the fastest addressing mode of 8086 processor?
Register addressing mode- This addressing mode is normally preferred because the instructions are compact and fastest executing of all instruction forms. Registers may be used as source operands, destination operands or both.
Why addressing modes are required in microprocessor?
The way any operand is selected during the program execution is dependent on the addressing mode of the instruction. The purpose of using addressing modes is as follows: To give the programming versatility to the user. To reduce the number of bits in addressing field of instruction.
Which addressing mode is being used in the given instruction?
Which addressing mode is being used in the given instruction? Explanation: The given instruction is using the direct addressing mode as the address is directly mentioned in the instruction rather than being stored in any register.

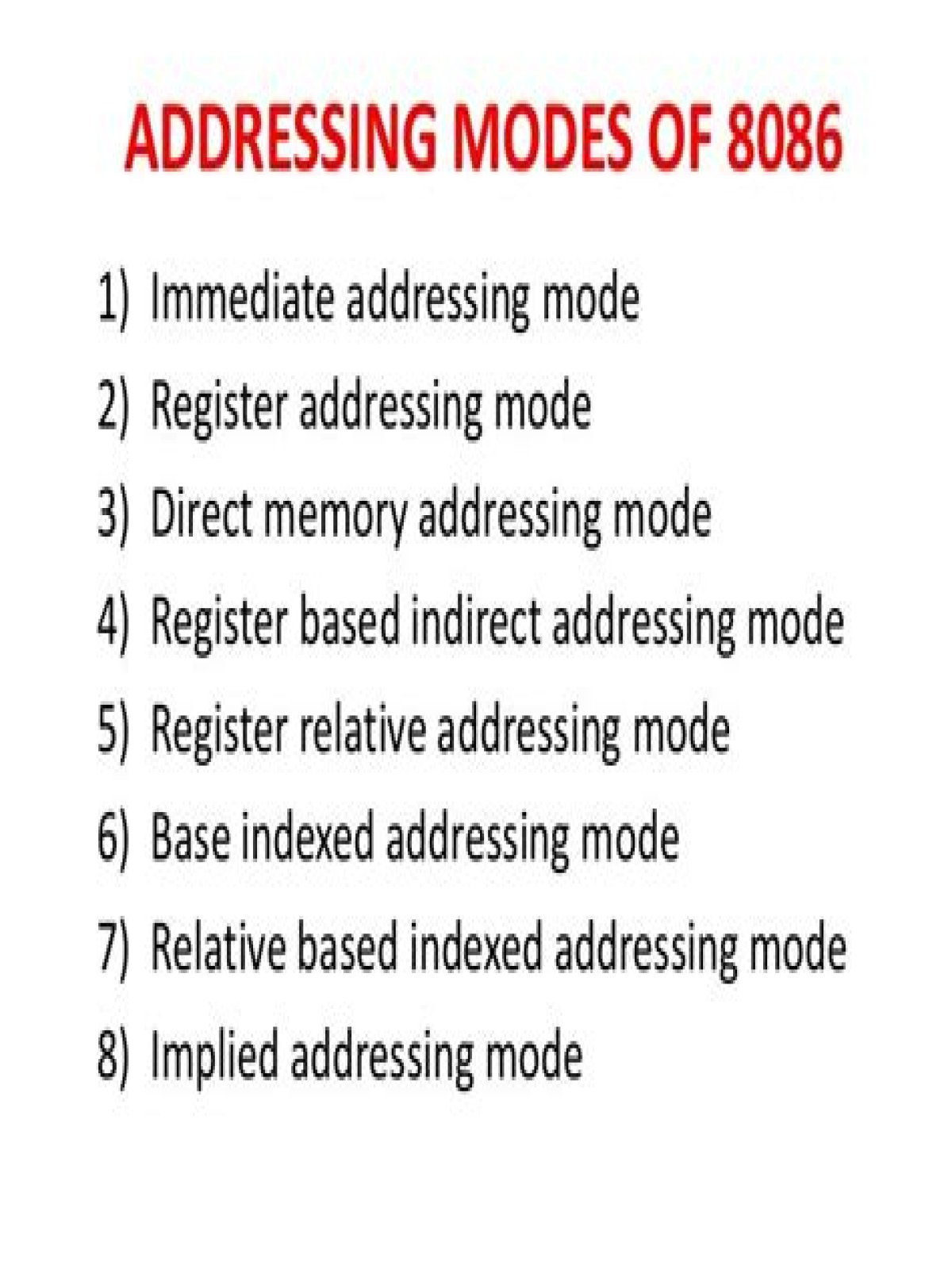

What are the different addressing modes?
Types of Addressing Modes-
- Implied / Implicit Addressing Mode.
- Stack Addressing Mode.
- Immediate Addressing Mode.
- Direct Addressing Mode.
- Indirect Addressing Mode.
- Register Direct Addressing Mode.
- Register Indirect Addressing Mode.
- Relative Addressing Mode.
How addressing mode is significant for referring memory?
The 8086 memory addressing modes provide flexible access to memory, allowing you to easily access variables, arrays, records, pointers, and other complex data types.
What is the advantage of using address mode in an instruction?
These can also be said as the advantages of using addressing mode: To give programming versatility to the user by providing such facilities as pointers to memory, counter for loop control, indexing of data, and program relocation. To reduce the number of bits in the addressing field of the instruction.
What are the types of addressing modes?
Different types of Addressing Modes are: Direct addressing : Here, address field contains address of operand. Single memory access is required . Limited address space. No extra calculations are required to mainpulate effective address. Indirect addressing : Use of pointer is required, which points to the address of the operand.
What is immediate addressing mode?
Immediate Addressing Mode. Immediate addressing mode means that the value for a given instruction in assembly programming is directly specified. This means the value is constant and written immediately and immutably into the instruction.
What is indirect addressing mode?
The indirect addressing mode uses a register to hold the actual address that will finally be used in the data move; the register itself is not the address, but rather the number in the register.
What is an addressing mode?
Addressing Modes– The term addressing modes refers to the way in which the operand of an instruction is specified. The addressing mode specifies a rule for interpreting or modifying the address field of the instruction before the operand is actually executed.
