10.0. 0.0/8 (addresses 10.0. 0.0 through 10.255. 255.255 inclusive)172.16. 0.0/12 (addresses 172.16. 0.0 through 172.31. 255.255 inclusive)192.168. 0.0/16 (addresses 192.168. 0.0 through 192.168.

Table of Contents

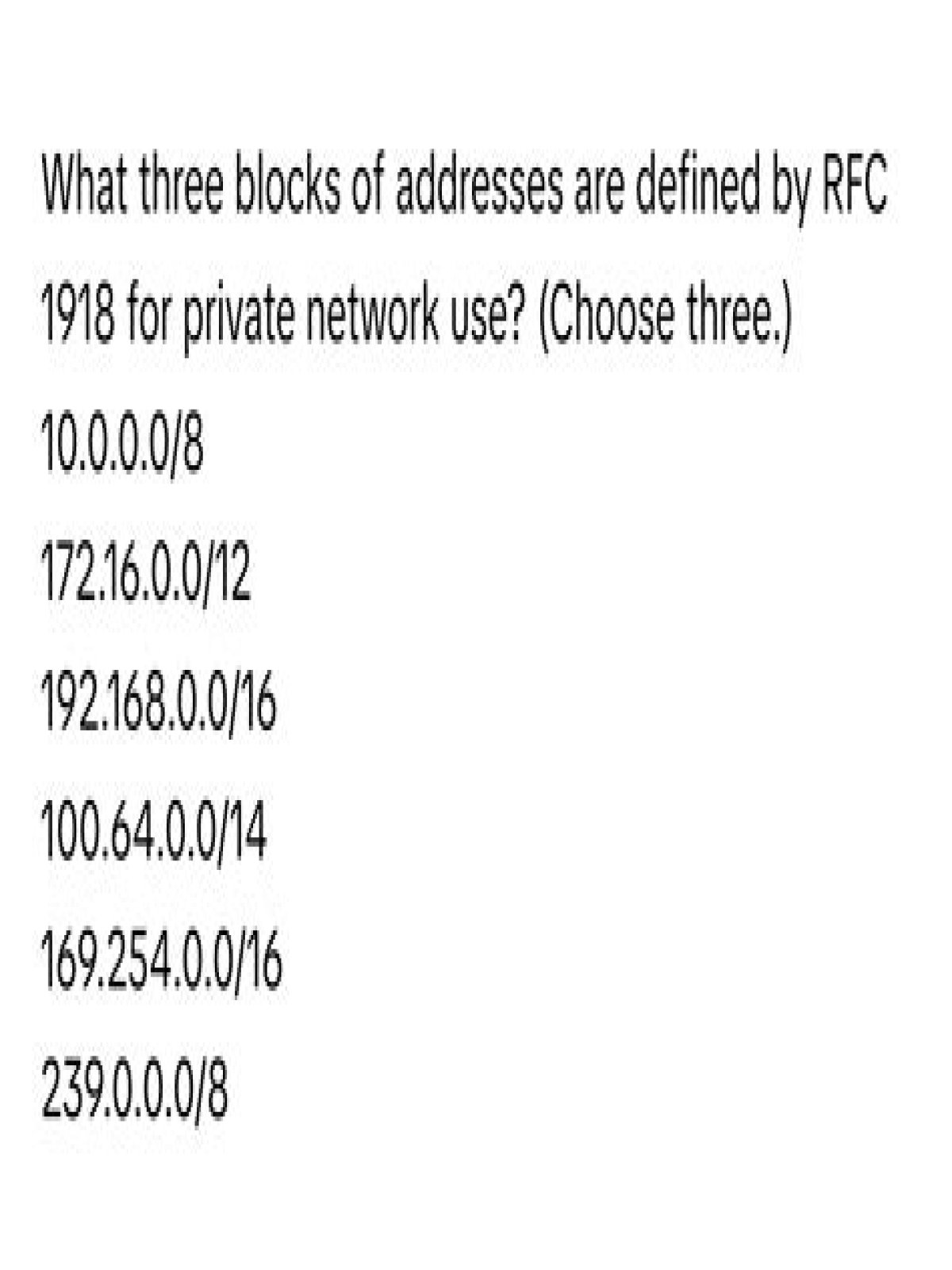

What three blocks of addresses are for private network use?

Section 3: Private Address Space The Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of the IP address space for private networks: 10.0. 0.0 – 10.255. 255.255 172.16. 0.0 – 172.31.

What does RFC 1918 stand for?

Request for Comment 1918 (RFC 1918), “Address Allocation for Private Internets,” is the Internet Engineering Task Force (IETF) memorandum on methods of assigning of private IP addresses on TCP/IP networks. … A private network can use a single public IP address.

What type of RFC is 1918?

RFC 1918, also known as Request for Comment 1918, is the Internet Engineering Task Force (IETF) record on methods of assigning private IP addresses on TCP/IP networks. RFC 1918 outlines the usable private IP addresses available under IPv4.

Why was the RFC 1918 address space defined?

RFC 1918, or non-publicly routable IP Address space is one of those “stop-gaps”, along with NAT, that arose out of need to prolong IPv4 space and has become a de facto standard for many network operators for both security and rudimentary asset tracking purposes.

What is a 10.10 IP address?

0.0. 10.10. 10.1 can possibly be the address of the router, which means the address where you send all the traffic when you want to reach outside internet.

What RFC 1918 addresses?

An RFC1918 address is an IP address that is assigned by an enterprise organization to an internal host. These IP addresses are used in private networks, which are not available, or reachable, from the Internet. In fact, one of the basic requirements of the Internet is that each host has a unique IP address.

What is the RFC for the IP protocol?

RFC 791 – Internet Protocol.

Which of the following is a private network?

Overview: Private NetworkTypeNetworkingRelated ConceptsInformation Security Intranet Overlay Network Networking

Which of the following IP addresses is a private class B IP address as defined by RFC 1918 there may be multiple answers )?

The addresses in the range 172.16. 0.0 through 172.31. 255.255 are all considered private, based on RFC 1918.

Article first time published on

What is the purpose of private addresses RFC 1918 2?

RFC 1918, “Address Allocation for Private Internets,” specifies ranges of IP addresses that will never be routable on the global Internet. These addresses can therefore be used on “private” networks without concern for potential addressing conflicts with other networks.

Why can't a computer with an RFC 1918 IP address be used as a public facing Web server?

A computer with an RFC 1918 address cannot be used as a server because client requests will not reach it. Routers prevent packets with RFC 1918 address in the destination address from leaving the networks.

What is a valid RFC 1918 CIDR prefix that can be used for creating an Oracle cloud infrastructure virtual cloud network?

IPv6-enabled VCNs use a /56 IPv6 CIDR block. For your VCN, Oracle recommends using the private IP address ranges specified in RFC 1918 (10.0. 0.0/16, 172.16/16, and 192.168/16). However, you can use a publicly routable range.

Why does it make sense to filter RFC 1918 networks at the egress?

As a general rule, it is good practice to prevent network traffic intended for RFC 1918 subnets from leaving the firewall via the WAN interface. This avoids unnecessary traffic on the WAN link and also provides a small security benefit by keeping information about the LAN network behind the firewall.

What is CIDR block?

CIDR notation (Classless Inter-Domain Routing) is an alternate method of representing a subnet mask. It is simply a count of the number of network bits (bits that are set to 1) in the subnet mask. … The CIDR number is typically preceded by a slash “/” and follows the IP address. For example, an IP address of 131.10.

What is a private IP address Give one reason why virtual machines typically use private instead of public IP addresses?

A private IP address is assigned by networks and routers to devices that are connected to them. A private IP address lets a router correctly direct traffic within its network, and private IPs also let devices within a network communicate with one another.

Which are the private address ranges?

What RFC 2460?

RFC 2460 is the first document to lay out the basic design of the IPv6 protocol and resulting packet: the 128-bit address; the IPv6 packet, the fixed (40-byte) header, the various extension headers and formats for each (including the original effort to make IPv6 more secure with authentication and security extensions); …

How many private IP's are there?

The first set of IP addresses allow for over 16 million addresses, the second for over 1 million, and over 65,000 for the last range. Another range of private IP addresses is 169.254. 0.0 to 169.254.

Is 10.10 a private IP?

Private addresses include IP addresses from the following subnets: Range from 10.0. 0.0 to 10.255. 255.255 — a 10.0.

Is 10.10 and 10.1 the same?

#UsernamePassword1ciscocisco2adminpassword3(blank)

What is my private IP Linux?

Displaying private IP addresses You can determine the IP address or addresses of your Linux system by using the hostname , ifconfig , or ip commands. To display the IP addresses using the hostname command, use the -I option. In this example the IP address is 192.168. 122.236.

What is private use network?

Private-Use Networks is a network that uses private IP Address space, following the standards set by RFC 1918 for Internet Protocol Version 4 (IPv4), and RFC 4193 for Internet Protocol Version 6 (IPv6). These addresses are commonly used for home, office, and enterprise Local Area Networks (LANs).

What can be defined as a private network used by an Organisation?

An intranet can be defined as a private network used by an organization. Its primary purpose is to help employees securely communicate with each other, to store information, and to help collaborate.

What is firewall types of firewall?

There are mainly three types of firewalls, such as software firewalls, hardware firewalls, or both, depending on their structure. Each type of firewall has different functionality but the same purpose. … Packet-filtering Firewalls. Circuit-level Gateways. Application-level Gateways (Proxy Firewalls)

What are the different types of requests for comments RFC?

ProtocolRFC(s)RMON1757RSVP2205SMTP821, 822, 974, 1869, 1870SNMP1157

What are the different categories of RFC?

In addition to standards-track documents (proposed, draft, standard and BCP), the RFC series contains three other categories: Informational, Experimental and Historic.

What is RFC draw and explain various maturity levels of RFC?

An RFC, during its lifetime, falls into one of six maturity levels: proposed standard, draft standard, Internet standard, historic, experimental, and Informational.

What is the IP address range of apipa?

The IP address range for APIPA is (169.254. 0.1 to 169.254. 255.254) having 65, 534 usable IP addresses, with the subnet mask of 255.255.

How many addresses are in a 26?

A “/26” network provides 64 IPv4 addresses. The lower the number after the oblique, the more addresses contained in that “block”.

Which of the following is true when describing multicast address?

Solution(By Examveda Team) Packets addressed to a multicast address are delivered to all interfaces identified by the multicast address, the same as in IPv4. It is also called a one-to-many address. You can always tell a multicast address in IPv6 because multicast addresses always start with FF .
