30.0/24 network. Extended ACLs should be located as close as possible to the source of the traffic to be filtered. This way, undesirable traffic is denied close to the source network, without crossing the network infrastructure. Standard ACLs should be located as close to the destination as possible.

Table of Contents

What are standard ACL used for?

0.0). However, if User tries to access Server, the traffic will be forbidden because of the second ACL statement (access-list 1 deny 172.16. 0.10 0.0. 0.0).

What is named access list?

A named access control list is a list of permissions that can be attached to an object. It is a list consisting of one or more subjects (users, user groups, or pseudo-users) and operations (delete, edit, read, or change permissions) that are either allowed or denied to those particular subjects.

How do I know where my ACL is applied Cisco?

  1. Use the show ip interface command to verify that the ACL is applied to the correct interface.
  2. The output will display the name of the access list and the direction in which it was applied to the interface.
  3. Use the show access-lists command to display the access-lists configured on the router.

What is the difference between ACL standard and extended?

A “Standard” ACL allows you to prioritize traffic by the Source IP address. An “Extended” ACL provides greater control over what traffic is prioritized. Extended ACLs can use any or all of the following parameters: … Destination IP address.

What are the two types of ACL?

How does ACL work in Cisco?

An ACL is a list of permit or deny rules detailing what can or can’t enter or leave the interface of a router. Every packet that attempts to enter or leave a router must be tested against each rule in the ACL until a match is found. If no match is found, then it will be denied.

What is standard access list?

Access-list (ACL) is a set of rules defined for controlling network traffic and reducing network attacks. ACLs are used to filter traffic based on the set of rules defined for the incoming or outgoing of the network. These are the Access-list which are made using the source IP address only.

How do I find my access list?

Access lists filter either inbound or outbound traffic based on the ip access-group options of in or out . To display the contents of current access lists, use the show access-lists privileged EXEC command. To display the contents of all current IP access lists, use the show ip access-list EXEC command.

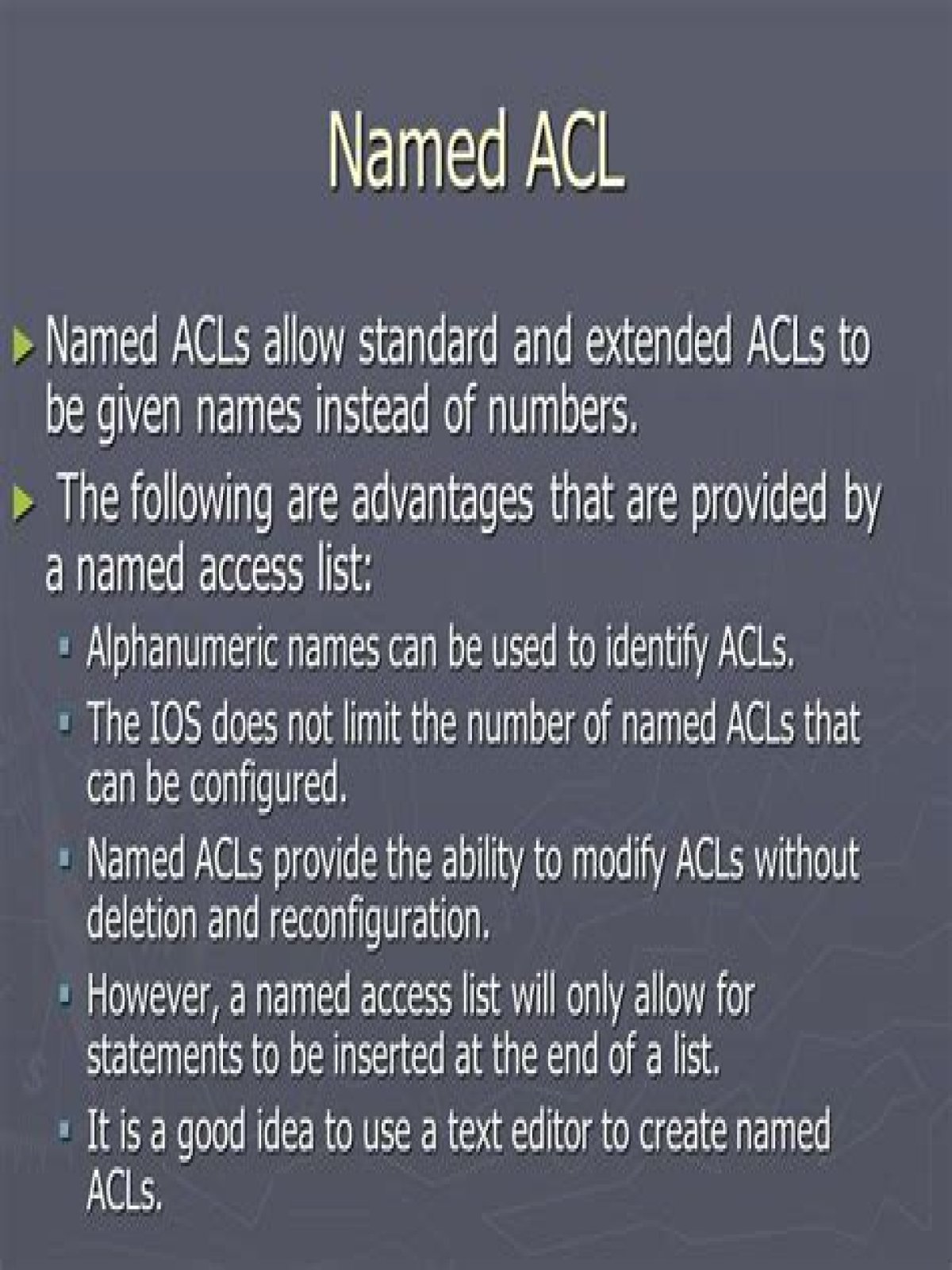

What is name ACL?

Named Access Control Lists (ACLs) allows standard and extended ACLs to be given names instead of numbers. Unlike in numbered Access Control Lists (ACLs), we can edit Named Access Control Lists. To create a Named Access Control List (ACL), we can use the following IOS command from Global Configuration mode.

Article first time published on

What is an ACL defined and applied to?

An access control list (ACL) is a table that tells a computer operating system which access rights each user has to a particular system object, such as a file directory or individual file. Each object has a security attribute that identifies its access control list.

How do you set up a named ACL?

To configure an extended named ACL, enter the ip access-list extended command. The options at the ACL configuration level and the syntax for the ip access-group command are the same for numbered and named ACLs and are described in Extended numbered ACL configuration and Extended numbered ACL configuration.

How many types of ACL are there in Servicenow?

when we talk about record type than acl can be applied on Row level or Field level or in other words we can say two type of record acl’s i.e., Row level acl and field level acl (column level) acl.

Which type of ACL can filter based on the source IP address?

Standard ACLs – this type filters traffic based only on the source IP address. They range from 1-99 and are implemented closest to the destination to block all the services like FTP, HTTP, Telnet. Extended ACLs – packet filtering is done based on the source IP, destination IP, protocol types, and port numbers.

What is IPv4 ACL?

An Access Control List (ACL) is a list of one or more Access Control Entries (ACEs), where each ACE consists of a matching criteria and an action (permit or deny).

Why is standard ACL close to destination?

– Standard ACLs are placed as close to the destination as possible. – Standard ACLs filter packets based on the source address only so placing these ACLs too close to the source can adversely affect packets by denying all traffic, including valid traffic.

What is ACL in Cisco switch?

When applied to a trunk port, the ACL filters traffic on all VLANs present on the trunk port. When applied to a port with voice VLAN, the ACL filters traffic on both data and voice VLANs. The main benefit with Port ACL is that it can filter IP traffic (using IP access lists) and non-IP traffic (using MAC access list).

How does network ACL work?

Access control lists (ACLs) in a nutshell It acts as the gatekeeper of your network by regulating all incoming and outgoing data packets. The ACL works according to set rules and checks all incoming and outgoing data to determine whether it complies with these rules.

What is an ACL in Servicenow?

Rules for access control lists (ACLs) restrict access to data by requiring users to pass a set of requirements before they can interact with it.

How many ACL can be applied to an interface?

Rules for ACL – We can assign only one ACL per interface per protocol per direction, i.e., only one inbound and outbound ACL is permitted per interface.

What is ACL rule?

ACLs are a collection of permit and deny conditions, called rules, that provide security by blocking unauthorized users and allowing authorized users to access specific resources. ACLs can block any unwarranted attempts to reach network resources. The WAP device supports up to 50 IPv4, IPv6, and MAC ACL rules.

What are the components of a standard ACL?

What is ACL CCNA?

CCNA™: Access Control Lists. The Cisco Access Control List (ACL) is are used for filtering traffic based on a given filtering criteria on a router or switch interface. Based on the conditions supplied by the ACL, a packet is allowed or blocked from further movement.

How do I check my ACL on Windows?

To view a policy access control list, click a domain’s name from the Domains pane in the Policy Administration window and select the Access Control Rules tab. In the Search Results table, click the view access control lists icon . The View Access Control Lists window opens.

How do I access my ACL router?

Use the show interfaces command to see a list of all interfaces currently configured on the router.

How do you set up a standard access list?

ACL number for the standard ACLs has to be between 1–99 and 1300–1999. Once the access list is created, it needs to be applied to an interface. You do that by using the ip access-group ACL_NUMBER in|out interface subcommand. in and out keywords specify in which direction you are activating the ACL.

Which commands allow you to view the interfaces that have IP access lists applied to them?

CommandDescriptionshow ip interfaceShows which interfaces have IP access lists on them.show ipx interfaceShows which interfaces have IPX access lists on them.show running-configShows the access lists and which interfaces have access lists set.

What is the difference between firewall and ACL?

A firewall has one main use and purpose and that is to examine traffic passing through a part of the network and make decisions about what to let through and what to block. ACLs do stateless inspection, which means that the access list looks at a packet and has no knowledge of what has come before it.
